micromag 20

micromag

20

The loading magazine from FMB for sliding headstock automatic lathes in the small diameter range. The switchable pilger step separation enables reliable separation and feeding of material bars with very small diameters. The principle of the single-stage feed ensures minimum changeover times for the material bars.

Bar feeder micromag 20

Machine functions

Pilgrim step separation

The pilgrim step separator is an addition to the separating...

Information

Pilgrim step separation

The pilgrim step separator is an addition to the separating device for material bars with a diameter of 0.8 mm to 4 mm. Thanks to the toothed shape, each material bar is picked up in a separate profile and moved towards the guide channel with a clocked movement. This ensures reliable feeding of the smallest material bars into the open guide channel.

Machine carrier (small series)

The basis of the bar feeder is a torsion-resistant machine...

Information

Machine carrier (small series)

The basis of the bar feeder is a torsion-resistant machine carrier made of drawn aluminum. This central element accommodates all components and ensures that the material guide is solid and precise and that the bar feeder has the necessary stability. The machine carriers are manufactured to order at FMB.

Separating device (small series)

The material bars are stored on the side support. Hold-down...

Information

Separating device (small series)

The material bars are stored on the side support. Hold-down devices that can be adjusted to the bar diameter ensure that the material bars roll reliably into the guide channel.

Feed and guidance of the material bar (single-stage)

The feed bar enables the material bar to be fed...

Information

Feed and guidance of the material bar (single-stage)

The feed bar enables the material bar to be fed in stably and reliably. Thanks to the linear movement without lateral swivel-out, the feed bar enables the material bar to be changed particularly quickly.
The material bar is fed in the cycle of the automatic lathe. The guide channel is flooded with oil and fitted with inserts that can be replaced without tools and are matched to the diameter of the material bar (and the passage of the spindle).

Control panel

The mobile, 8.4″ control panel is operated by touch. All...

Information

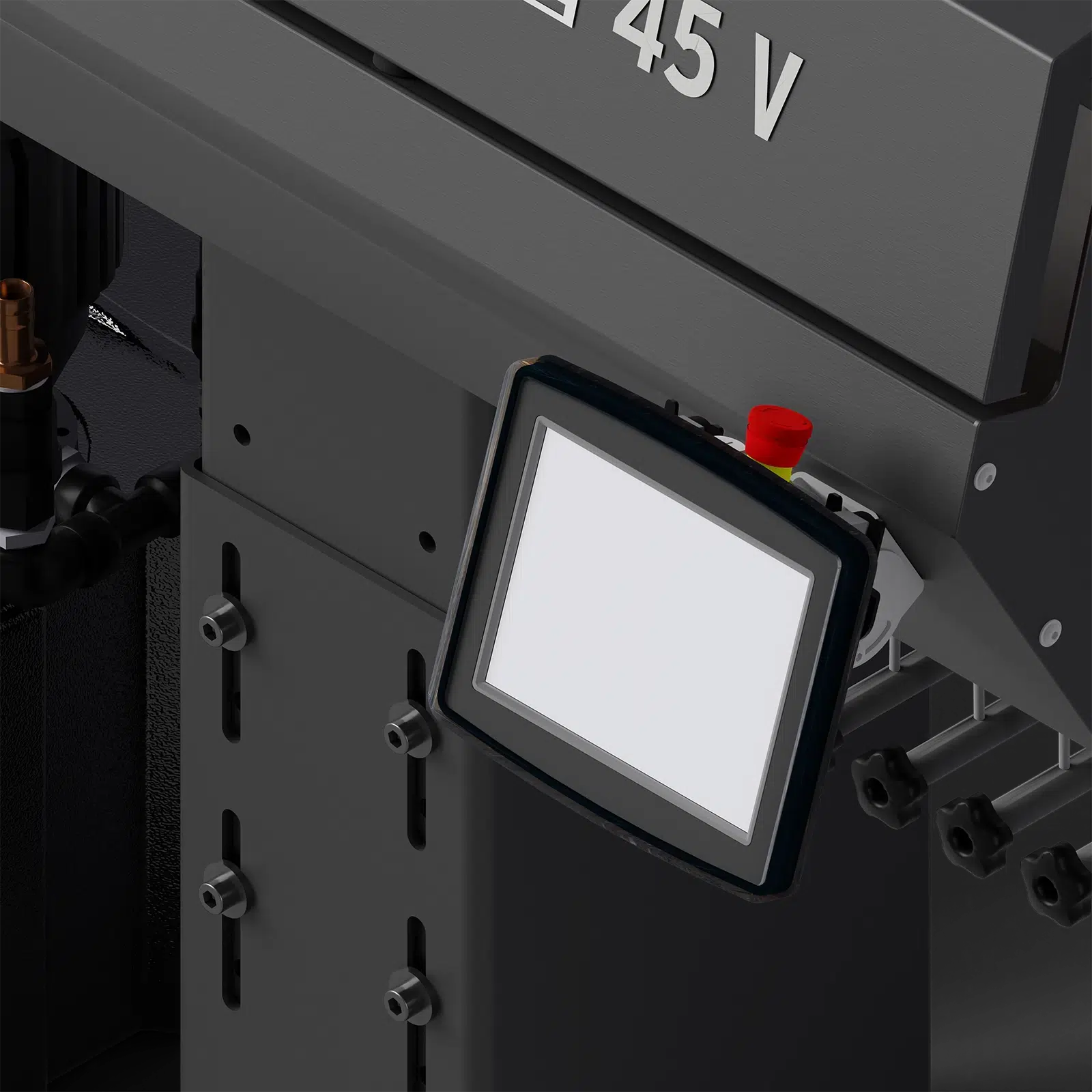

Control panel

The mobile, 8.4″ control panel is operated by touch. All users will quickly find their way around the intuitive and clearly laid out operating concept.

Bar feeder micromag 20

Machine data

Technical information	Unit	Value
Ø feed rod (max.)	mm	23
Bar length 1)	mm	1600 / 3200 / 4200
Material bar (min. - max.)	mm	0,8 - 23
Charging capacity	mm	235
Loading capacity (min. Ø/max. Ø)	St.	117 at 2 mm/ 10 at 23 mm
Remaining piece length (max.)	mm	320
Charging time*	s	15
Feed rate	mm/s	0 - 750
Return speed	mm/s	0 - 750
Operating voltage (50/60 Hz)**	V	3 x 190 - 480
Power requirement	kW	1,5
Compressed air connection	Mpa (bar)	0,6 (6)
Weight***	kg	450 / 600 / 800

*for length variant 3200; **is set according to the machine tool specification; ***without operating materials.
