turbo

RS 2-20

The bar feeder from FMB for sliding headstock automatic lathes in the small diameter range. The innovative RS technology ensures maximum guide quality in the turning process. The swivel-in feed rod enables compact dimensions.

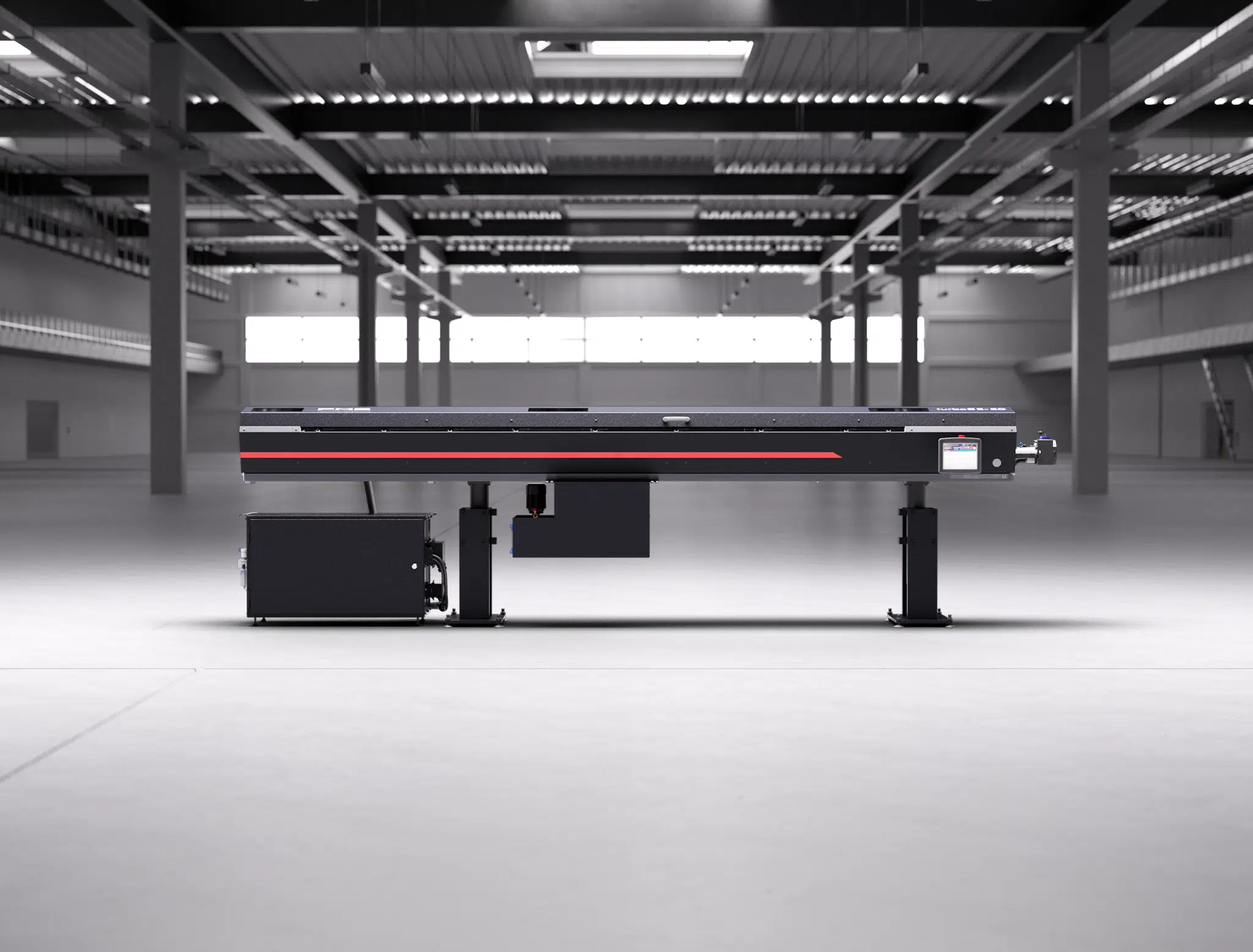

Bar feeder turbo RS 2-20

Machine functions

FMB Maschinenbau - Hersteller von Stangenlademagazine & Handlingsysteme - Lademagazin - Funktion - RS-Technik

RS technology

The RS technology enables seamless guidance of the material bar up to the spindle of the automatic lathe.The...

FMB Maschinenbau - Hersteller von Stangenlademagazine & Handlingsysteme - Lademagazin - Funktion - Steuerung

Control panel

The mobile, 8.4″ control panel is operated by touch. All users will quickly find their way around...

FMB Maschinenbau - Hersteller von Stangenlademagazine & Handlingsysteme - Lademagazin - Funktion - Maschinenträger

Machine carrier (small series)

The basis of the bar feeder is a torsion-resistant machine carrier made of drawn aluminum. This central...

Feed and guidance of the material bar (two-stage)

The feed rod can be swiveled in, enabling a particularly compact design of the bar feeder. It pushes...

Separating device (small series)

The material bars are stored on the side support. Hold-down devices that can be adjusted to the bar diameter...

Bar feeder turbo RS 2-20

Machine data

Technical information	Unit	Value
Ø feed rod (max.)	mm	23
Bar length 1)	mm	2200 / 3200 / 4200
Material bar (min. - max.)	mm	2 - 23
Charging capacity	mm	235
Loading capacity (min. Ø/max. Ø)	St.	117 at 2 mm/ 10 at 23 mm
Remaining piece length (max.)	mm	420
Charging time*	s	21
Feed rate	mm/s	0 - 750
Return speed	mm/s	0 - 750
Operating voltage (50/60 Hz)**	V	3 x 190 - 480
Power requirement	kW	1,5
Compressed air connection	Mpa (bar)	0,6 (6)
Weight***	kg	450 / 550 / 650
Stroke machine tool	mm	up to 400

*for length variant 3200; **is set according to the machine tool specification; ***without operating materials.
